　　一、FZB型氟塑料自吸泵簡介FZB series fluorine plastic self-priming pump



　　FZB系列氟塑料自吸式離心泵，過流部件均采用氟塑料制成，軸封采用先進的外裝式波紋管機械密封，方便可調。是新一代耐強腐蝕的自吸泵。其自吸高度在3-4米(介質為清水時)，免去了普通離心泵須倒灌安裝、灌引水、裝底閥等不便因素。廣泛用于酸洗工藝、制酸制堿、化工、農藥、造紙、電子等行業。適用溫度:-20℃~100℃



　　FZB series fluorine plastic self-priming pump flow components are made offluorine plastic.shaft seal uses advanced exterior mounted bellows mechanicalseal,easy adjustable.lt is a new generation of strong corrosion-resistantself-priming pump,the height of3.-4meters(medium for water),Solve the ordinarycentrifugdl pump to be installed intrusion,irigation water,mounted bottom valveproblems.Widely used in the pickling process,acid and alkali manufacturing.chemicals.,pesticides,paper making.electrorics and other industries.



　　Applicable temperature:-20℃~120℃。



　　二、FZB型氟塑料自吸泵型號意義Model sense



　　65FZB-32



　　65-泵進口直徑是65mm inlet diameter is 65 mm；



　　F-泵過流部件用氟塑料制造Flow parts are fluorine plastic;



　　Z-具有自吸功能Hkas self-prirming funclio；



　　B-單級單吸式離心泵,Single-stage single-suctioncentrifugal pump；



　　32-泵揚程是32M,Fump head is 32M；

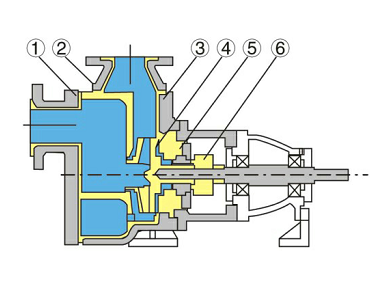

　　三、FZB型氟塑料自吸泵結構示意圖Structure and material



　　1前蓋Front cover



　　2聯接法蘭Comnecting flange



　　3泵體pump body



　　4葉輪lmpeller



　　5泵蓋Pump cover



　　6機械密封Mechanical seal

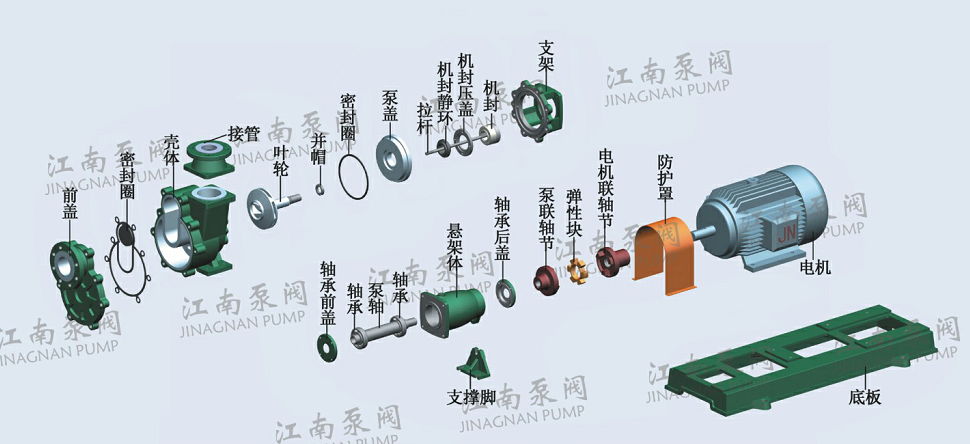

　　四、FZB型氟塑料自吸泵零部件示意圖Structure and material

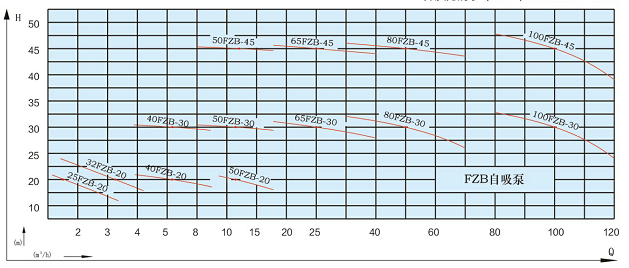

　　五、FZB型氟塑料自吸泵性能曲線圖(n=2900r/min)Performance Curve Diagram



　　*介質為清水（20℃)medium is water

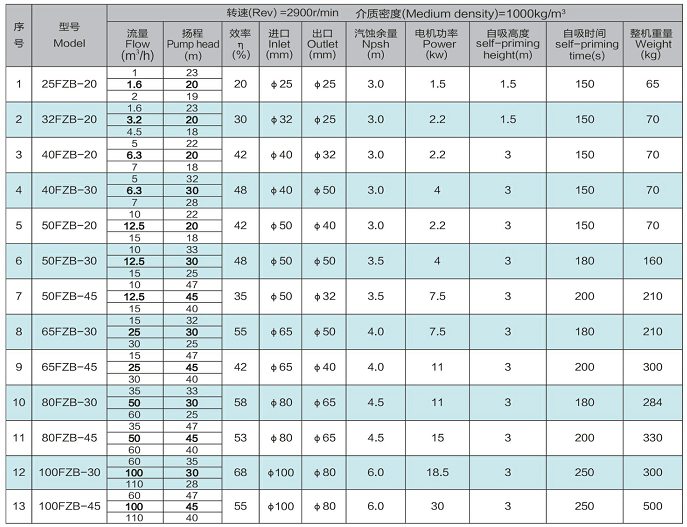

　　六、FZB型氟塑料自吸泵的型號與性能參數Model and technical data



　　*表格中渡量揚程加粗字體為甚本型bold font as the standard model
